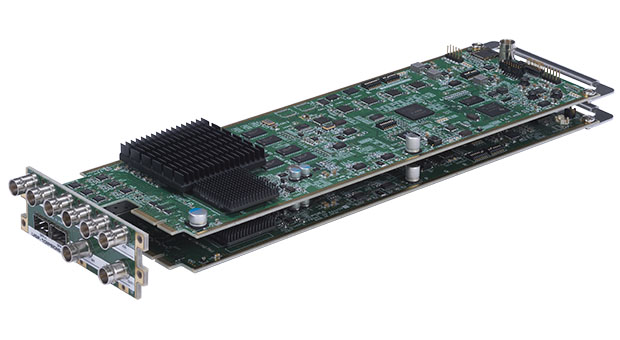

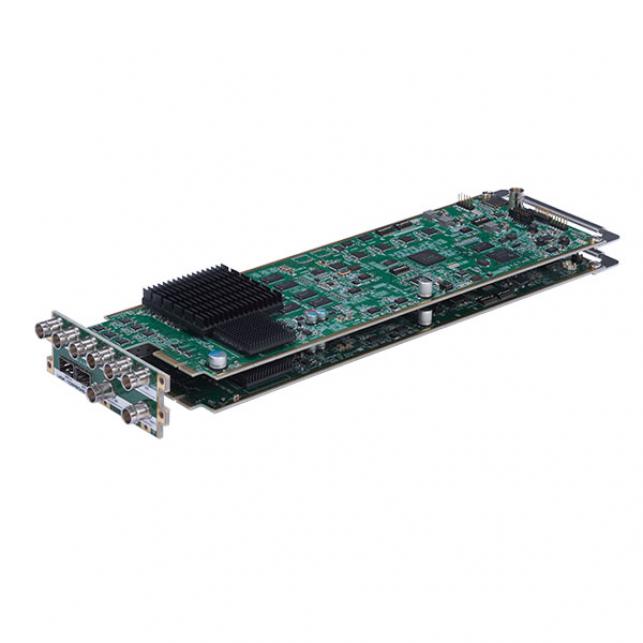

IP 視訊模組>USF-10IP



IP gateway that converts input data between IP formats and between IP and SDI.

Video over IP module for Universal System Frame USF-212S/105S. This module has dual 10 GbE (SFP+) port, it converts input data between IP formats and between IP and SDI. Compatible with 4K (2SI/SQD) and multi-format* input and output.

For details, contact your FOR-A dealer.



Approaches to video over IP




Available Modules

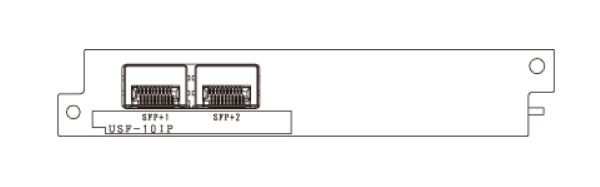

USF-10IP

■Dual 10 GbE (SFP+) port

■Converts to other encapsulation modes

■IP format: SMPTE 2022-5/6/7, VSF TR-04, VSF TR-03, ASPEN, NMI

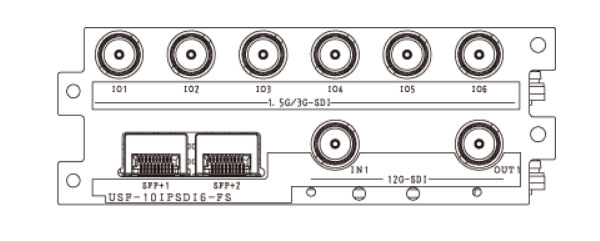

USF-10IPSDI6-FS

■Approaches to video over IP

■One 12G-SDI input, one output

■2SI/SQD conversion, Level-A/B compatible

■SMPTE 2022-6 (uncompressed): Simultaneous conversion of up to 6 inputs/outputs selectable (6 streams)

■IP format: SMPTE 2022-5/6/7, VSF TR-04, VSF TR-03, ASPEN, NMI

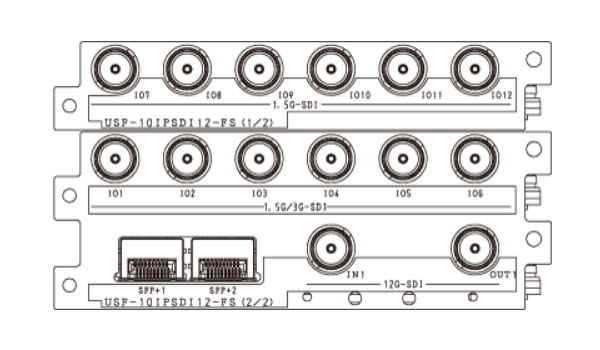

USF-10IPSDI12-FS

■Approaches to video over IP

■One 12G-SDI input, one output

■2SI/SQD conversion, Level-A/B compatible

■SMPTE 2022-6 (uncompressed): Simultaneous conversion of up to 6 inputs and 6 outputs (12 streams)

■IP format: SMPTE 2022-5/6/7, VSF TR-04, VSF TR-03, ASPEN, NMI





文件下載：USF-10IP
