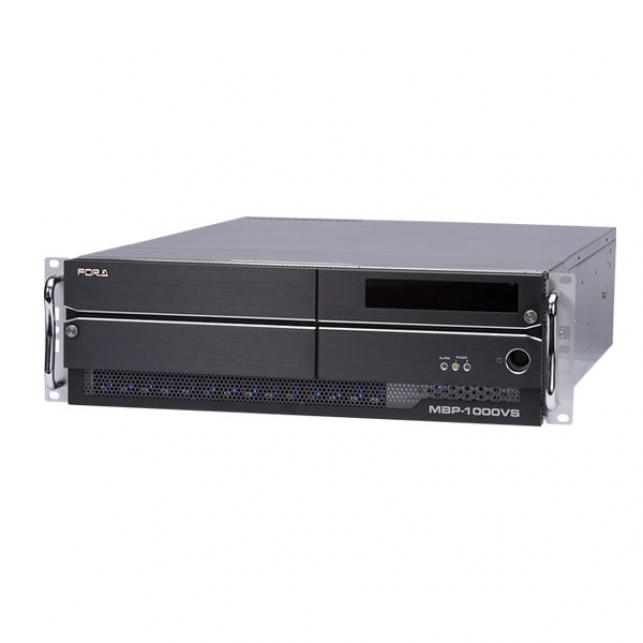

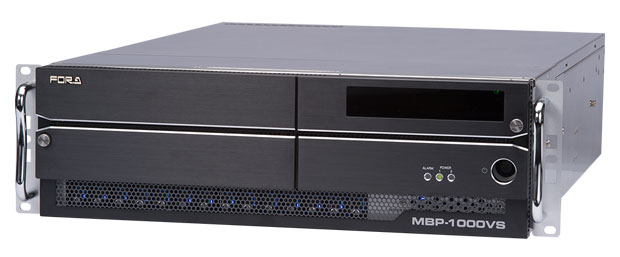

Video Server>MBP-1000VS




Choose from a broad range of interfaces including 12G-SDI, 3G-SDI, and SFP+, for 12G-SDI or video over IP transmission. 4K XAVC™ and MPEG-2 codecs are available. Whether your video server will be used for ingest, playout, or other applications, the series has a model perfect for your needs. Enjoy the reliability of XAVC™ and MPEG-2 hardware codecs.*¹ Choose from 12G-SDI models, SFP+ equipped models (supporting 10 Gbps video over IP), or others.Add LTO for simultaneous backup*² during 4K recording or extended recording.*³

*1 Switches between recording and playback. *2 One channel only. *3 Up to 18.7 hours of continuous recording to LTO-7 (XAVC Class 300).




Features


■2160/59.94p*⁴ or 1080/59.94i

■4K UHD: XAVC Intra Class 480*⁴, 300*⁴, HD: XAVC Intra Class 100 (all MXF formats)

■XAVC Class 480, 300, 100 (HD) (MXF format)

■Choose from four SSD capacities: 1.2 TB,*⁵ 2.4 TB, 4.8 TB, or 9.6 TB

■Redundant power supply

■Full range of playout and ingest system applications.

  Bridges baseband output from cameras with file-based broadcast workflows.

■Can display time codes or credits on a monitor in sync with the main playout line

■LTO backup: Transfer MXFs created during recording to an optional internal LTO tape drive (one channel only)*⁴

■External LTO/SSD backup: Transfer recorded MXFs to an optional external LTO tape drive or SSD cartridge

■Control interfaces: Add an optional serial port or GPI port

  *4 4K models only *5 1.2 TB available only for the MBP-1000VS-P series

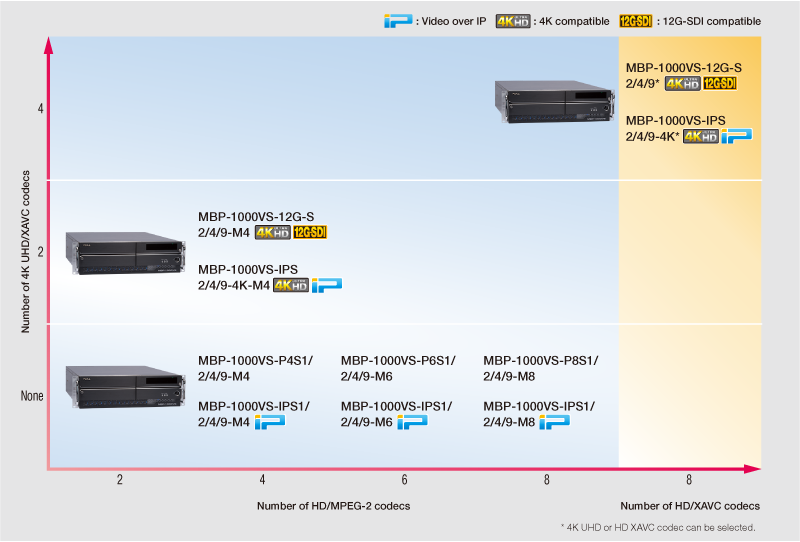

Video server product line

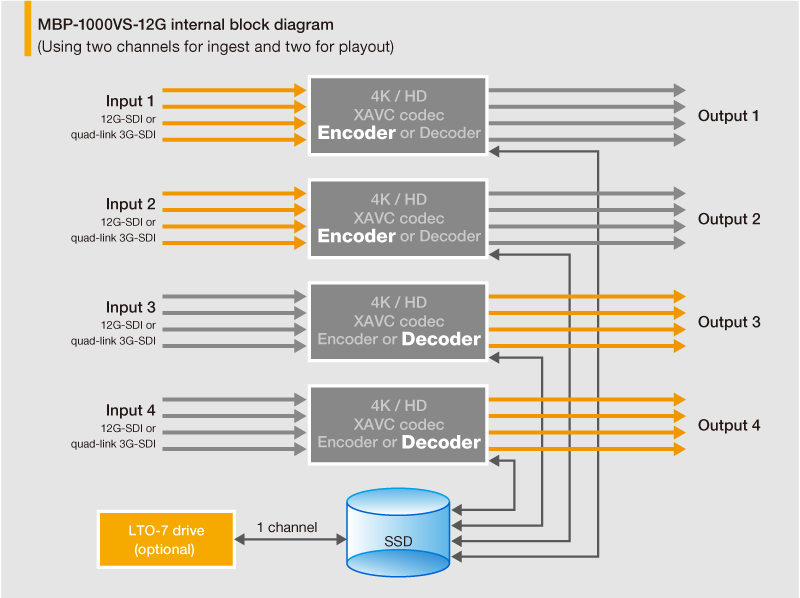

MBP-1000VS-12G

■Quad-channel 4K XAVC codec support. Standard configuration provides two channels for recording and two for playback. Can be cofigured with up to four channels for recording and four for playback.

■Choose from 12G-SDI or 3G-SDI I/O (maximum two inputs and two outputs via quad-link 3G-SDI).

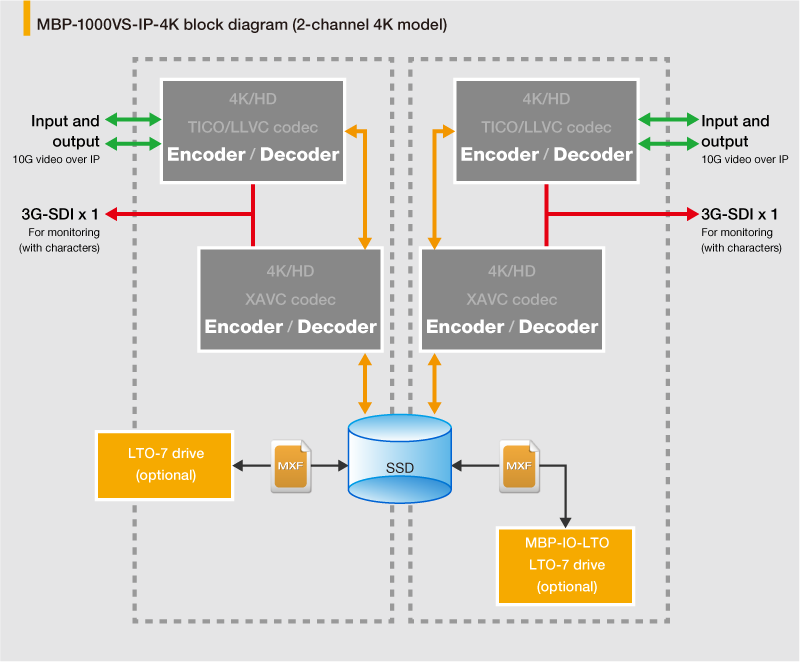

MBP-1000VS-IP

■Up to dual-channel 4K XAVC codec support. Switch channels from encoding to decoding as needed.

Codecs: XAVC Intra Class 480/300, MPEG-2 HD 422 (50 Mbps), MPEG-2 HD (35/25 Mbps)

■SFP+ port for up to two-channel 10 Gbps video over IP I/O

Supported formats (codecs): SMPTE 2022-6/7 (TICO), NMI (LLVC)

■Redundant SFP+ configuration available (two ports per channel)

■50i, 50p options available






文件下載：MBP-1000VS
